Processor special features | Intel VT-x with Extended Page Tables (EPT) | Tak |
| Intel Demand Based Switching | Tak |
| Intel Secure Key | Tak |
| Intel Virtualization Technology | VT-d,VT-x |
| Intel Hyper-Threading Technology | Tak |
| Intel Identity Protection Technology | Nie |
| Intel Turbo Boost Technology | Tak |
| Intel vPro Technology | Tak |
| Intel Flex Memory Access | Nie |
| Intel AES New Instructions | Tak |
| Enhanced Intel SpeedStep Technology | Tak |
| Intel Trusted Execution Technology | Tak |
Technical details | Scalability | 2S |
| Physical Address Extension (PAE) | Tak |
| Embedded options available | Nie |
| Supported instruction sets | AVX |
| PCI Express slots version | 3.0 |
| Execute Disable Bit | Tak |
| Idle States | Tak |
| Thermal Monitoring Technologies | Tak |
Operational conditions | Tcase | 86 degrees Celcium |
Power | VID Voltage Range | 0.6 - 1.30 Volt |
Graphics | On-board graphics adapter | Nie |
Processor | Turbo frequency (max) | 3.5 gigahertz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor operating modes | 64-bit |
| System bus rate | 8 Gigatranfers per second |
| Processor threads | 24 |

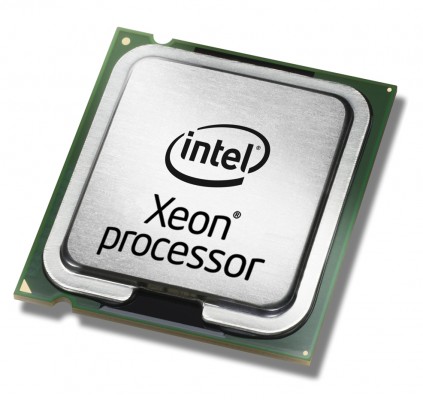

| Processor model | E5-2697V2 |
| Processor process | 22 nanometers |
| Component for | Server/Workstation |
| Processor socket | Socket R (LGA 2011) |
| Processor cores | 12 |
| Processor clock speed | 2.7 gigahertz |
| Processor family | Intel Xeon E5 v2 |
