    J8770A

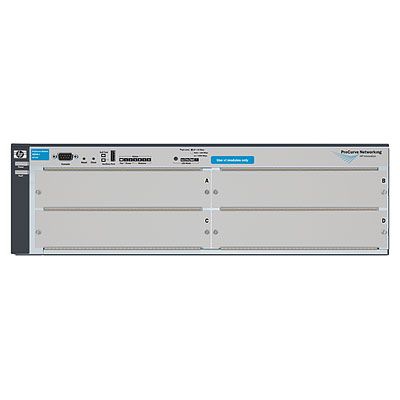

    HP Procurve switch 4204vl 4 open slots for options

    P/N: J8770A
    EAN:   8827802140336
    0884420101475
    0882780214064
    0882780214026
    0882780214057
    5051749605365
    5055266231311
    0882780214033

    Manufacturer: Hewlett Packard Enterprise

    Ask our experts about:

    - the equivalent of a third-party
    - The same product in a different than the new state (eg, refurbished)
    - Other / alternative solution

    Condition

    new
    Available options:

    Availability

    Price and flexible funding

    Negotiate the price if:

    - you don't fit in your budget
    - you buy more than one piece
    - you are our regular customer
    - to check how flexible our prices are!

    Find out about our
    pricing
    Are you a Reseller?

    We can offer you additional benefits and long-term cooperation! Contact us for more details !

    Help Zone

    GRATIS

    Consultations

    Call us: +48 71 738 25 31

    Mail us: office@112it.com

    > we'll advise you in your selection
    > we'll rescue your IT project
    > we'll search the whole world for you!

    Adjust further:

    Think about selecting the option for the equipment you wish to purchase.

    portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

    Additional information

    Other featuresMemory and processorModuł matrycy: Motorola PowerPC MPC8245 przy 330 MHz, 24 MB pamięci flash, 64 MB SDRAM; Wielkość bufora pakietu: 36 MB
    Power requirements100–127 / 200–240 V; 50/60 Hz
    Power supply type1 x J4839A
    Size15.3 inch
    Input frequency50 / 60 Hz Hertz
    Input voltage100-127 / 200-240 VAC Volt
    Latency< 6 µs (FIFO)
    Management platformHP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
    Technical detailsLED indicatorsTak
    Weight & dimensionsWidth442 millimeter
    Depth388.6 millimeter
    Height133.4 millimeter
    Weight9410 gram
    PowerPower requirements100 - 240V, 50/60Hz
    Operational conditionsOperating temperature (T-T)0 - 40 degrees Celcium
    Technical detailsRack mounting3U
    NetworkingCabling technology10/100/100/1000Base-T(X)
    PowerNumber of power supply units1
    Operational conditionsOperating relative humidity (H-H)15 - 95 percent
    Technical detailsDimensions (WxDxH)388.6 x 442 x 133.4 millimeter
    Switching capacity38.4 gigabit per second
    Data transfer rate10 gigabit per second
    Chassis typeEIA
    PowerPower consumption (typical)630 Watt
    Operational conditionsOperating temperature (T-T)0 - 40 degrees Celcium
    Operating altitude4600 meter
    Technical detailsNumber of slots4
    Heat dissipation2152 British thermal unit per hour
    PowerInput frequency50/60 Hertz
    Input voltage100 - 240 Volt
    Technical detailsLatency6 &mu;s
    Memory and processorMPC8245 330 MHz
    Power consumption (typical)630 Watt
    Colour of productGrey
    Operational conditionsOperating altitude4 600 m meter
    Storage relative humidity (H-H)15-95% percent
    Operating relative humidity (H-H)15-95% percent
    Storage temperature (T-T)-40 - 70 degrees Celcium
    CertificatesElectromagnetic compatibilityFCC Klasa A; VCCI Klasa A; EN55022/CISPR-22 Klasa A; CISPR22 Klasa A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3
    SafetyCSA 22.2 nr 950; UL 60950; EN60950
    Technical detailsElectromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
    Host portsSupports a maximum of 96 10/100 ports or 64 10/100/1000 ports and 16 mini-GBICs.
    Rack mountingUrządzenia są przeznaczone do montażu w 19-calowym stelażu telekomunikacyjnym (standard EIA) lub w specjalnej szafce na sprzęt (akcesoria do montażu jest dostarczany wraz z przełącznikiem). montaż wyłącznie w pozycji poziomej.
    PowerPower availability8,2/3,8 A Watt
    Input current8.2 / 3.8 A Ampere
    Weight & dimensionsProduct weight (fully loaded)9.41 kilogram
    Sound emissionAcoustic pressure emissionsPower: 64.2 dB, DIN 45635T.19 per ISO 7779 dB decibel
    ProtocolsSupported network protocolsRFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2598 DiffServ Expedited Forwarding (EF); RFC 2597 DiffServ Assured Forwarding (AF); RFC 2138 RADIUS; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2737 Entity MIB; RFC 2665 Ethernet MIB; RFC 2668 802.3 MAU MIB; RFC 2819 — cztery grupy RMON: 1 (statystyki), 2 (historia), 3 (alarmy) i 9 (zdarzenia); RFC 3164 Syslog; XRMON; RFC 2613 SMON; RFC 2618 RADIUS Client MIB; RFC 791 IP; RFC 1757 — grupy RMON 1,2,3,9; RFC 3176 sFlow
    Data transmissionSwitching capacity38.4 Gbps gigabit per second
    NetworkingNetworking standardsEN: EN55024, CISPR 24; ESD: IEC 61000-4-2; Radiated: IEC 61000-4-3; EFT/Burst: IEC 61000-4-4; Surge: IEC 61000-4-5; Conducted: IEC 61000-4-6; Power frequency magnetic field: IEC 61000-4-8; Voltage dips and interruptions: IEC 61000-4-11; Harmonics: EN61000-3-2, IEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3
    Ports & interfacesI/O ports4 wolne gniazda na moduły; Obsługuje maks.96 portów 10/100 z automatycznym wykrywaniem szybkości, 96 portów 10/100/1000 z automatycznym wykrywaniem szybkości, 16 portów mini-GBIC lub 4 porty 10-GbE, albo ich kombinację
    J8770A
