    J8772B

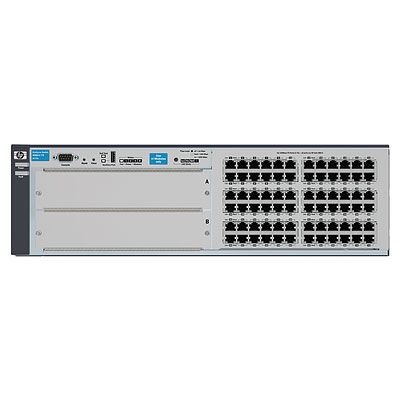

    HP ProCurve Switch 4202vl-72

    P/N: J8772B
    EAN:   0884420047889
    0884420047841
    0884420047858
    0884420047865

    Manufacturer: Hewlett Packard Enterprise

    Ask our experts about:

    - the equivalent of a third-party
    - The same product in a different than the new state (eg, refurbished)
    - Other / alternative solution

    Availability

    Price and flexible funding

    Negotiate the price if:

    - you don't fit in your budget
    - you buy more than one piece
    - you are our regular customer
    - to check how flexible our prices are!

    Find out about our
    pricing
    Are you a Reseller?

    We can offer you additional benefits and long-term cooperation! Contact us for more details !

    Help Zone

    GRATIS

    Consultations

    Call us: +48 71 738 25 31

    Mail us: office@112it.com

    > we'll advise you in your selection
    > we'll rescue your IT project
    > we'll search the whole world for you!

    Adjust further:

    Think about selecting the option for the equipment you wish to purchase.

    portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

    Additional information

    Other featuresMemory and processorFabric: Motorola PowerPC MPC8245 @ 330 MHz, 24 MB flash, packet buffer size: 36 MB, 64 MB SDRAM
    Power requirements100-127 VAC/200-240 VAC; 50/60 Hz
    Power supply type1 x J4839A
    MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only.
    Remote administrationcommand-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console)
    Input frequency50 / 60 Hertz
    Input voltage100-127 / 200-240 VAC Volt
    Connectivity technologyWired
    Dimensions (WxDxH)388.6 x 442 x 133.4 millimeter
    Data transfer rate10 megabit per second
    LatencyLatency: < 6 µs (FIFO)
    Management platformHP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
    Power over Ethernet (PoE)Power over Ethernet (PoE) supportNie
    MemoryInternal memory64 megabyte
    Flash memory24 megabyte
    Operational conditionsOperating temperature (T-T)32 - 104 Fahrenheit
    MemoryPacket buffer memory36 megabyte
    Operational conditionsStorage temperature (T-T)-40 - 70 degrees Celcium
    Operating temperature (T-T)0 - 40 degrees Celcium
    CertificatesElectromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3
    SafetyCSA 22.2 No. 950; UL 60950; EN 60950
    Packaging dataPackage weight7190 gram
    Technical detailsElectromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
    Supported protocolsGeneral protocols\nHTML and telnet management\nIEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON\nNetwork management\nMIBs\nDevice management\nIP multicast\nIEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 3046 DHCP Relay Agent Information Option\nSecurity\nRFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2737 Entity MIB (Version 2)\nQoS/Cos\nRFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF)\nIEEE 802.1X Port Based Network Access Control; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv2 Secure Shell\nRFC 3376 IGMPv3
    Processor clock speed330 megahertz
    Built-in processorMotorola PowerPC MPC8245
    StackableNie
    PowerInput current8.2 / 3.8 A Ampere
    Power consumption (typical)630 Watt
    Weight & dimensionsWeightFully loaded\n23.81 lb. pounds
    Weight10800 gram
    ProtocolsSupported network protocolsRFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2598 DiffServ Expedited Forwarding (EF); RFC 2597 DiffServ Assured Forwarding (AF); RFC 2138 RADIUS; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2737 Entity MIB; RFC 2665 Ethernet MIB; RFC 2668 802.3 MAU MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 Syslog; XRMON; RFC 2613 SMON; RFC 2618 RADIUS Client MIB; RFC 791 IP; RFC 1757 RMON Groups 1, 2, 3, 9; RFC 3176 sFlow
    Data transmissionMaximum data transfer rate0.1 gigabit per second
    Throughputup to 22.4 million pps Million packets per second
    Switching capacity38.4 gigabit per second
    NetworkingNetworking standardsIEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3
    Ports & interfacesI/O ports2 open module slots; 72 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 120 auto-sensing 10/100 ports or 48 Gigabit ports or 8 mini-GBICs or 2 10-GbE ports, or a combination
    Console portRS-232
    Basic switching RJ-45 Ethernet ports quantity72
    Management featuresMIB supportRepeater MIB; Ethernet Interface MIB; IEEE 802.3 Ethernet MIB
    Switch typeManaged
    J8772B
