    J9148A

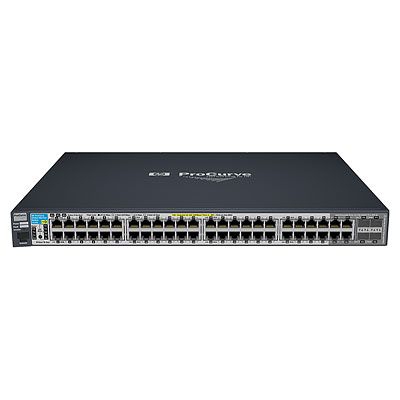

    HP ProCurve 2910al-48G PoE Switch

    P/N: J9148A
    EAN:   0884420767251
    0884420767275
    0884420767282
    0890552632800
    0884420767268
    0084420767268
    4053162290426
    0884420784784
    0884420767244
    5711045255939

    Manufacturer: Hewlett Packard Enterprise

    Ask our experts about:

    - the equivalent of a third-party
    - The same product in a different than the new state (eg, refurbished)
    - Other / alternative solution

    Condition

    new
    Available options:

    Availability

    Price and flexible funding

    Negotiate the price if:

    - you don't fit in your budget
    - you buy more than one piece
    - you are our regular customer
    - to check how flexible our prices are!

    Find out about our
    pricing
    Are you a Reseller?

    We can offer you additional benefits and long-term cooperation! Contact us for more details !

    Help Zone

    GRATIS

    Consultations

    Call us: +48 71 738 25 31

    Mail us: office@112it.com

    > we'll advise you in your selection
    > we'll rescue your IT project
    > we'll search the whole world for you!

    Adjust further:

    Think about selecting the option for the equipment you wish to purchase.

    portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

    Additional information

    Other featuresPower requirements100 -127 VAC / 200 -240 VAC; 50 /60 Hz.\nThe switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz.
    Memory and processorProcessor: Dual ARM1156T2S @ 515 MHz, 4 MB flash ROM, 1 GB flash, 512 MB SDRAM; packet buffer size: 6 MB.
    MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
    Remote administrationcommand-line interface; Web browser; out-of-band management (serial RS-232C)
    Input frequency50 / 60 Hz Hertz
    Input voltage100-127 / 200-240 VAC Volt
    Dimensions (WxDxH)442.5 x 365.8 x 43.9 millimeter
    Latency1000 Mb: < 2.9 µs (FIFO ); 10 Gbps: < 1.3 µs (FIFO ).
    Management platformHP ProCurve Manager Plus; HP ProCurve Manager; command-line interface; Web browser; out-of-band management (serial RS-232C).
    Power over Ethernet (PoE)Power over Ethernet (PoE) supportTak
    Operational conditionsHeat dissipation667 British thermal unit per hour
    MemoryInternal memory512 megabyte
    Memory typeSDRAM
    Flash memory4 megabyte
    Operational conditionsOperating temperature (T-T)32 - 131 Fahrenheit
    Storage temperature (T-T)-40 - 158 degrees Celcium
    Operating temperature (T-T)0 - 55 degrees Celcium
    CertificatesElectromagnetic compatibilityFCC part 15 Class A; EN 55022/CISPR-22 Class A; VCCI Class A.
    SafetyEN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950.
    Technical detailsProcessor technology-
    Electromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; IEC 61000-3-2; IEC 61000-3-3
    Electrical enhancementsThe switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz
    Supported protocolsRFC 1591 DNS (client); HTML and telnet management\nRFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 2021 RMONv2 MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB\nMIBs\nIP multicast\nIEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; RFC 3046 DHCP Relay Agent Information Option\nRFC 1981 IPv6 Path MTU Discovery; RFC 2460 IPv6 Specification; RFC 2710 Multicast Listener Discovery (MLD) for IPv6; RFC 2925 Remote Operations MIB (Ping only); RFC 3019 MLDv1 MIB; RFC 3315 DHCPv6 (client only); RFC 3513 IPv6 Addressing Architecture; RFC 3596 DNS Extension for IPv6; RFC 3810 MLDv2 (host joins only); RFC 4022 MIB for TCP; RFC 4113 MIB for UDP; RFC 4251 SSHv6 Architecture; RFC 4252 SSHv6 Authentication; RFC 4253 SSHv6 Transport Layer; RFC 4254 SSHv6 Connection; RFC 4293 MIB for IP; RFC 4419 Key Exchange for SSH; RFC 4443 ICMPv6; RFC 4541 IGMP & MLD Snooping Switch; RFC 4861 IPv6 Neighbor Discovery; RFC 4862 IPv6 Stateless Address Auto-configuration\nIEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON\nNetwork management\nGeneral protocols\nIPv6\nDevice management\nQoS/Cos\nIEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL)\nRFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF); Ingress Rate Limiting\nRFC 3376 IGMPv3 (host joins only)
    Processor clock speed515 megahertz
    Built-in processorARM1156T2S
    StackableTak
    Rack mountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet(hardware included); horizontal surface mounting only.
    PowerInput current6.4 / 3.2 A Ampere
    Power consumption (typical)556 Watt
    Weight & dimensionsWeight12.96 lb. pounds
    Weight5880 gram
    ProtocolsSupported network protocolsRFC 1591 DNS (client); HTML and telnet management; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; RFC 3046 DHCP Relay Agent Information Option; RFC 3376 IGMPv3 (host joins only); RFC 1981 IPv6 Path MTU Discovery; RFC 2460 IPv6 Specification; RFC 2710 Multicast Listener Discovery (MLD) for IPv6; RFC 2925 Remote Operations MIB (Ping only); RFC 3019 MLDv1 MIB; RFC 3315 DHCPv6 (client only); RFC 3513 IPv6 Addressing Architecture; RFC 3596 DNS Extension for IPv6; RFC 3810 MLDv2 (host joins only); RFC 4022 MIB for TCP; RFC 4113 MIB for UDP; RFC 4251 SSHv6 Architecture; RFC 4252 SSHv6 Authentication; RFC 4253 SSHv6 Transport Layer; RFC 4254 SSHv6 Connection; RFC 4293 MIB for IP; RFC 4419 Key Exchange for SSH; RFC 4443 ICMPv6; RFC 4541 IGMP & MLD Snooping Switch; RFC 4861 IPv6 Neighbor Discovery; RFC 4862 IPv6 Stateless Address Auto-configuration; RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 2021 RMONv2 MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB; RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF) Ingress Rate Limiting; IEEE 802.1X Port Based Network Access Control RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL).
    Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
    SecurityMAC address filteringTak
    Access Control List (ACL)Tak
    Data transmissionMaximum data transfer rate1 gigabit per second
    ThroughputUp to 131 million pps. Million packets per second
    NetworkingAuto MDI/MDI-XTak
    Full duplexTak
    Networking standards0.5 period; 30% reduction, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD
    Ports & interfacesI/O ports44 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; Media type: Auto-MDIX; 4 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a mini-GBIC slot (for use with mini-GBIC transceivers).
    Basic switching RJ-45 Ethernet ports quantity48
    Management featuresQuality of Service (QoS) supportTak
    Switch typeUnmanaged
    J9148A

    Please note that despite all efforts to the specification may be out of date, and posted pictures do not always correspond to the actual appearance of the product.
